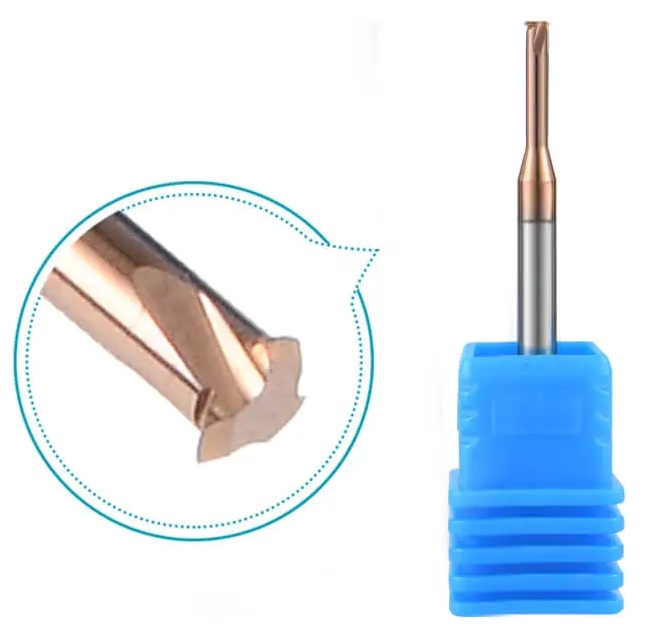

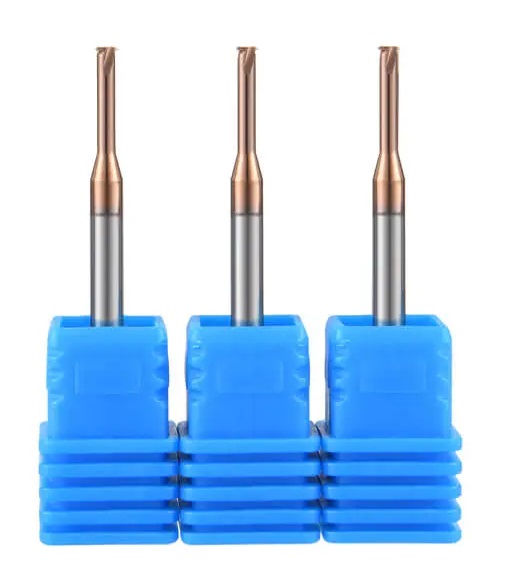

Three Teeth Thread Milling Cutter
M3 M4 M5 M6 M10 M12 60 Degree Thread Milling Tools For Hard Metal With Coating
Custom Cutting Tools
Brand name: ZLY®
Cutter type：Solid carbide thread mills without internal coolant，multi pitch thread end mill
No. of flutes: 3 flutes or 4 flutes
Material：micro grain carbide, 100% new material
Coating：TiAlN coated black, diamond coating available
Specifiction: Metric, Thread M3 – M16, length 38 – 150mm
Workpiece material: For carbon steel, hard alloy, stainless steel, cast iron, titanium alloy, hardened steel, graphite etc
Application：for general purpose threading
Carbide End Mill Specifications
| Brand Name | NEUBURG |
|---|---|
| Flutes | 2-6 Flutes |
| Material | Tungsten Carbide + PCD super hard diamond | Processing Type | Milling |
| Usage | High Speed Cutting |
| Suitable for | Al, brass, copper, plastic, CRFP, GFRP |
| Specification | Tooth pitch | Cutting diameter | Shank diameter | Flute Length | Overall Length |
|---|---|---|---|---|---|
| M3.0*0.5*D4*50L | 0.5 | 2.4 | 4 | 6 | 50 |
| M4*0.5*D4*50L | 105 | 3 | 4 | 10 | 50 |
| M4*0.7*D4*50L | 0.7 | 3.2 | 4 | 10 | 50 |
| M5*0.8*D4*50L | 0.8 | 3.5 | 4 | 11 | 50 |
| M6*1.0*D4*50L | 1 | 3.9 | 4 | 12 | 50 |
| M6*0.75*D4*50L | 0.75 | 4.8 | 6 | 15 | 50 |
| M5*0.8*D6*50L | 0.8 | 3.5 | 4 | 11 | 50 |
| M6*1.0*D6*50L | 1 | 3.9 | 4 | 12 | 50 |
| M6*0.75*D6*60L | 0.75 | 3.9 | 4 | 12 | 50 |
| M8*0.75*D6*60L | 0.8 | 5.9 | 6 | 20 | 60 |
| M8*0.5*D6*60L | 0.5 | 6 | 6 | 17 | 60 |
| M8*1.25*D6*60L | 1.25 | 5.9 | 6 | 16 | 60 |
| M8*1.0*D6*60L | 1 | 5.9 | 6 | 16 | 60 |
| M10*0.5*D8*65L | 0.5 | 7.9 | 8 | 21 | 65 |
| M10*0.75*D8*65L | 0.75 | 7.9 | 8 | 20 | 65 |
| M10*1.0*D8*65L | 1 | 7.9 | 8 | 22 | 65 |
| M10*1.25*D8*75L | 1.25 | 7.7 | 8 | 20 | 75 |
| M10.0*1.5*D8*65L | 1.5 | 7.7 | 8 | 20 | 75 |
| M12*0.5*D10*75L | 0.5 | 9.9 | 10 | 30 | 75 |
| M12*1.0*D10*65L | 1 | 9.9 | 10 | 25 | 75 |
| M12*1.5*D10*65L | 1.25 | 9.9 | 10 | 25 | 75 |
| M12*1.75*D10*75L | 1.75 | 8.5 | 10 | 25 | 75 |
| M14*2.0*D10*75L | 2 | 9.9 | 10 | 28 | 75 |
Packaging & Delivery
- One plastic pipe pack one piece, 10 pcs per group
- Put goods enclosed with air bubble paper into box
- Another package is accepted according to customer's requirement.
Shipment:
UPS/FedEx/DHL/TNT/EMS/etc.
