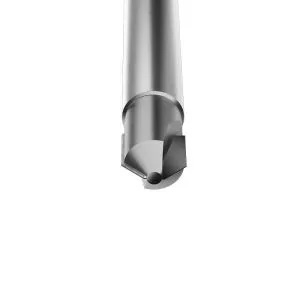

Pcd Chamfer Cutter Tools
Factory Price Pcd Chamfer Cutter Diamond Engraving Tool For Processing Aluminium Alloy router bit
Custom End Mill
Brand name: NEUBURG
Material: The overall tungsten steel + diamond blades
Type:Pcd Chamfer Cutter Diamond Engraving Tool
Suitable for: Acrylic, PVC, PC, copper, aluminum alloy cutting and chamfering
Coating: uncoated
Workpiece material: For Steel, Stainless steel, Cast Iron, Aluminum alloy, plastic, etc.

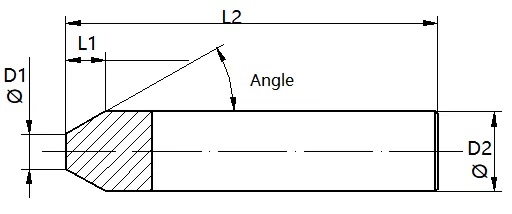

Carbide End Mill Specifications
| Brand Name | NEUBURG |
|---|---|
| Material | The overall tungsten steel + diamond blades |
| Shank diameter(MM) | D3.0-D12 |
| Whether the coating | NO |
| Processing of materials | PC, plastic, plastic, acrylic, glass fiber board, PP board, copper and aluminum magnesium alloy all metal, such as various non-metallic composite material, etc. |
| Applicable to the machine | All kinds of engraving machine, carved machine, drilling and tapping machine, and various kinds of high speed engraving and milling machine, etc. |
| Advantage | Using high granularity diamond material, edge cutting chamfer can achieve a integrated, |
| structure | Round Shank |
| Architecture | Tungsten steel cutter bar and diamond blade welding processing cutting and chamfering one structure |
| characteristics | higher service life and reduce the tool change time, high edge sharpness line cutting, good cutting surface is smooth, no burr of inferior smooth effect. |
| Regular size | 4*45°，4*90°，6*45°，6*60°，6*90°，6*100°，6*110°，D6*90°*φ2.0,6*120° |
| Production machine | High precision of five axis CNC grinding machine |
| Belong industry | The advertising industry and metal cutting industry |
| Blade diameter(MM) | D0.4-D12 |
