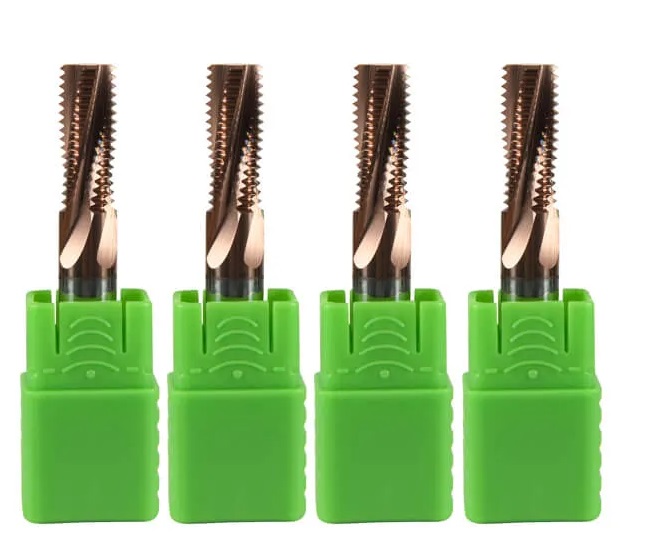

Carbide CNC Thread Milling Cutter End Mill
Custom Cutting Tools
Brand name: ZLY®
Solid Carbide Threading Endmills for Internal Thread
for general purposes as well as specific wide-ranging industries from automotive and taps, to medical and dental.
Processing range: copper, aluminium, die-casting aluminium, aluminium alloy, zinc alloy, bakelite, plastic. Advantages: stable size, clear teeth, smooth chip removal without residue, high hardness and not easy to break, can be processed to the bottom of the blind hole. Suitable for drilling and tapping table drill, precision engraving machine, automatic machine tool, CNC machining centre.
Carbide End Mill Specifications
| Brand Name | NEUBURG |
|---|---|
| Flutes | 2-6 Flutes |
| Material | Tungsten Carbide + PCD super hard diamond | Processing Type | Milling |
| Usage | High Speed Cutting |
| Suitable for | Al, brass, copper, plastic, CRFP, GFRP |

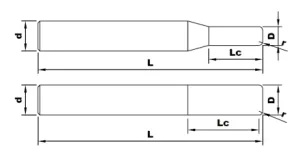

| D | Lc | L | d |
|---|---|---|---|
| D1 | 3 | 50 | d4 |
| D1.5 | 5 | 50 | d4 |
| D2 | 6 | 50 | d4 |
| D2.5 | 8 | 50 | d4 |
| D3 | 9 | 50 | d4 |
| D4 | 12 | 50 | d4 |
| D4 | 16 | 75 | d4 |
| D4 | 20 | 100 | d4 |
| D5 | 13 | 50 | d6 |
| D6 | 18 | 50 | d6 |
| D6 | 25 | 75 | d6 |
| D6 | 30 | 100 | d6 |
| D8 | 20 | 60 | d8 |
| D8 | 25 | 75 | d8 |
| D8 | 35 | 100 | d8 |
| D10 | 30 | 75 | d10 |
| D10 | 40 | 100 | d10 |
| D12 | 30 | 75 | d12 |
| D12 | 45 | 100 | d12 |
| D14 | 45 | 100 | d14 |
| D16 | 45 | 100 | d16 |
| D18 | 45 | 100 | d18 |
| D20 | 45 | 100 | d20 |
| D8 | 25 | 150 | d8 |
| D10 | 55 | 150 | d10 |
| D12 | 55 | 150 | d20 |
| D14 | 70 | 150 | d14 |
| D16 | 70 | 150 | d16 |
| D18 | 70 | 150 | d18 |
| D20 | 70 | 150 | D20 |
Packaging & Delivery
- One plastic pipe pack one piece, 10 pcs per group
- Put goods enclosed with air bubble paper into box
- Another package is accepted according to customer's requirement.
Shipment:
UPS/FedEx/DHL/TNT/EMS/etc.
